Model

Year

MG

SG

Illustration

Restrictions

UPD

PET

928

1995

0

01

001-00

248

Pos

Part  Number

Description

Remark

Qty

Model

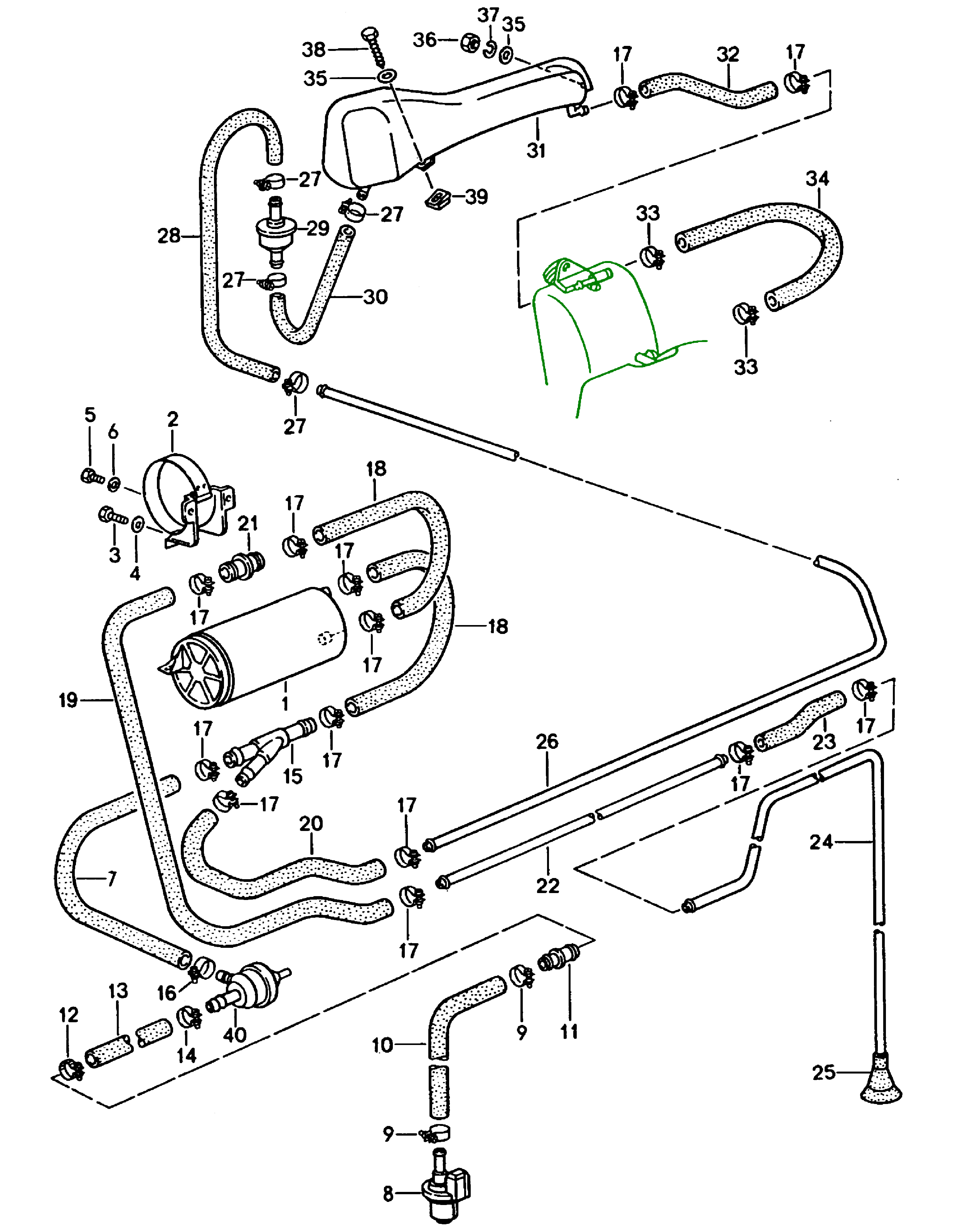

tank ventilation

1

993 201 221 01

carbon canister

1

2

928 201 015 02

bracket

1

3

900 075 014 02

hexagon-head bolt (M6*18)

1

4

803 817 121

washer (B6,4)

1

5

900 075 260 02

hexagon-head bolt (M6*16)

1

6

N 011 524 7

washer (B6,4)

1

-

999 181 168 50

hose (12 x 18,5  250 MM)

*

8

944 605 240 01

bleeder valve

1

9

999 512 055 02

hose clamp

2

10

999 181 419 50

hose

1

11

999 137 058 40

reducing socket

1

12

N 023 577 2

hose clamp

1

13

928 110 652 01

moulded hose

1

14

999 512 554 00

hose clamp

2

15

928 201 219 02

connecting piece

1

16

900 272 003 02

hose clamp

2

17

N 023 569 2

hose clamp

X

18

477 201 747 c

hose

2

19

900 180 031 50

hose

1

-

999 181 716 50

hose (9,5 x 15,5  530 MM)

*/1

21

930 110 267 00

hose connection

1

22

928 201 353 06

purge-air line front)

1

-

999 181 716 50

hose (9,5 x 15,5  170 MM)

*
