Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
001-00
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
 |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|

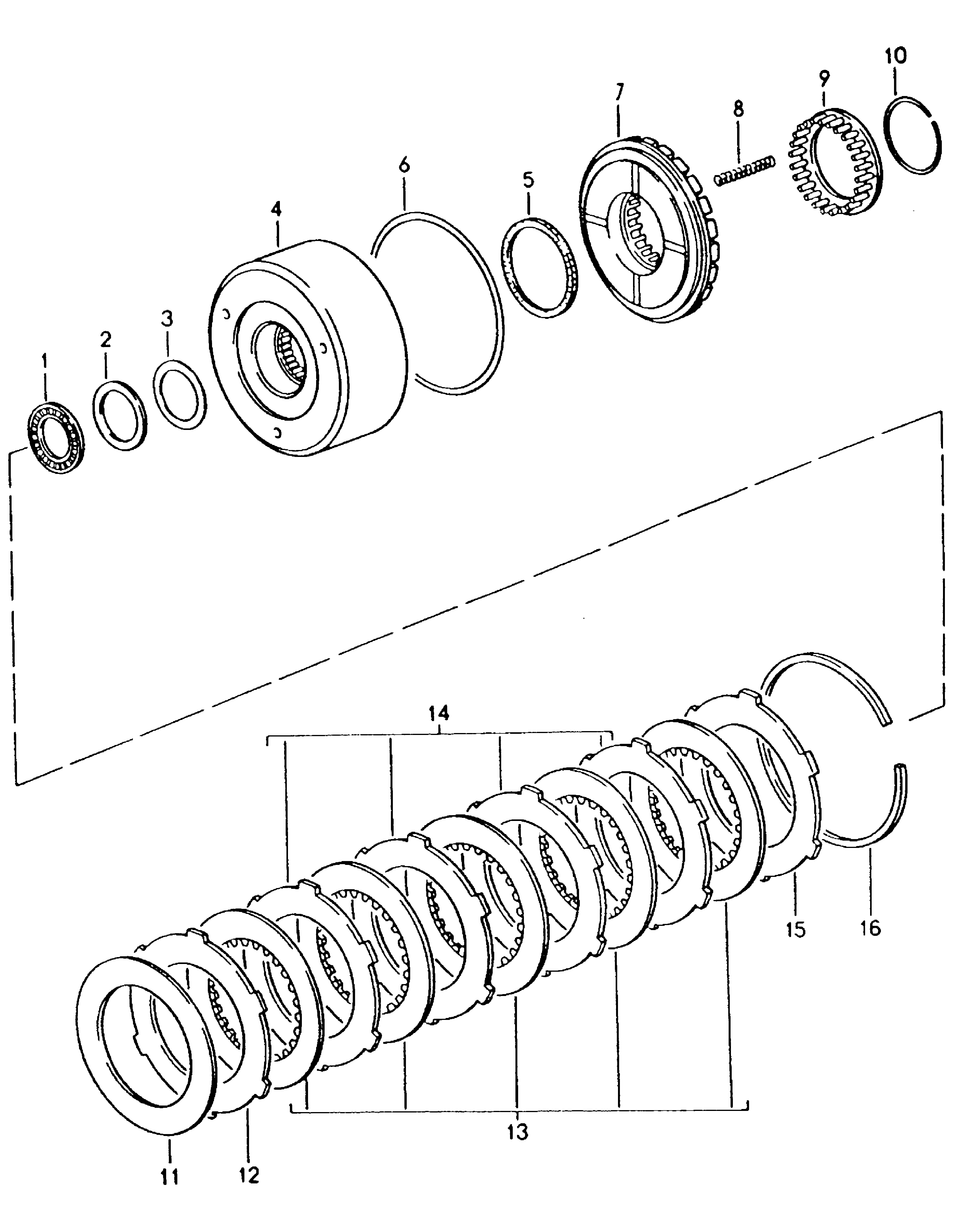

automatic transmission clutch (K1) |
|
|
A28.18 |
|
|
1 |
010 981 431 0 |
needle-roller bearing |
|
1 |
|
|
|
2 |
000 272 256 2 |
thrust washer |
|
1 |
|
|
|
3 |
126 272 055 2 |
spacer (0,1 MM) |
|
X |
|
|
|
(3) |
126 272 065 2 |
spacer (0,2 MM) |
|
X |
|
|
|
(3) |
126 272 075 2 |
spacer (0,5 MM) |
|
X |
|
|
|
(4) |
126 270 274 9 |
disc carrier (K1) |
|
1 |
|
|
|
5 |
126 272 039 2 |
boot (inner) |
|
1 |
|
|
|
(6) |
100 272 019 2 |
boot (outer) |
|
1 |
|
|
|
(7) |
126 272 203 1 |
piston (K1) |
|
1 |
|
|
|
8 |
126 993 890 4 |
spring |
|
27 |
|
|
|
9 |
126 272 086 4 |
concave washer |
|
1 |
|
|
|
10 |
126 994 063 5 |
circlip |
|
1 |
|
|
|
11 |
126 993 1 72 6 |
cup spring |
|
1 |
|
|
|
12 |
126 272 492 6 |
disc with external splines (2,0MM) |
|
1 |
|
|
|
13 |
126 272 062 5 |
inner disc (2,14 MM) |
|
1 |
|
|
|
14 |
126 272 502 6 |
disc with external splines (3,5MM) |
|
X |
|
|
|
(14) |
126 272 512 6 |
disc with external splines (4,0MM) |
|
X |
|
|
|
15 |
126 272 322 6 |
disc with external splines (4,5MM) |
|
1 |
|
|
|
16 |
126 994 053 4 |
circlip (2,0 MM) |
|
2 |
|
|
|
(16) |
126 994 063 4 |
circlip (2,5 MM) |
|
X |
|
|
|
(16) |
126 994 073 4 |
circlip (3,0 MM) |
|
X |
|
|
|
- |
126 270 135 0 |
guide ring (K1) |
|
1 |
|
|
|
- |
014 997 844 8 |
sealing ring (K1) |
|
1 |
|
