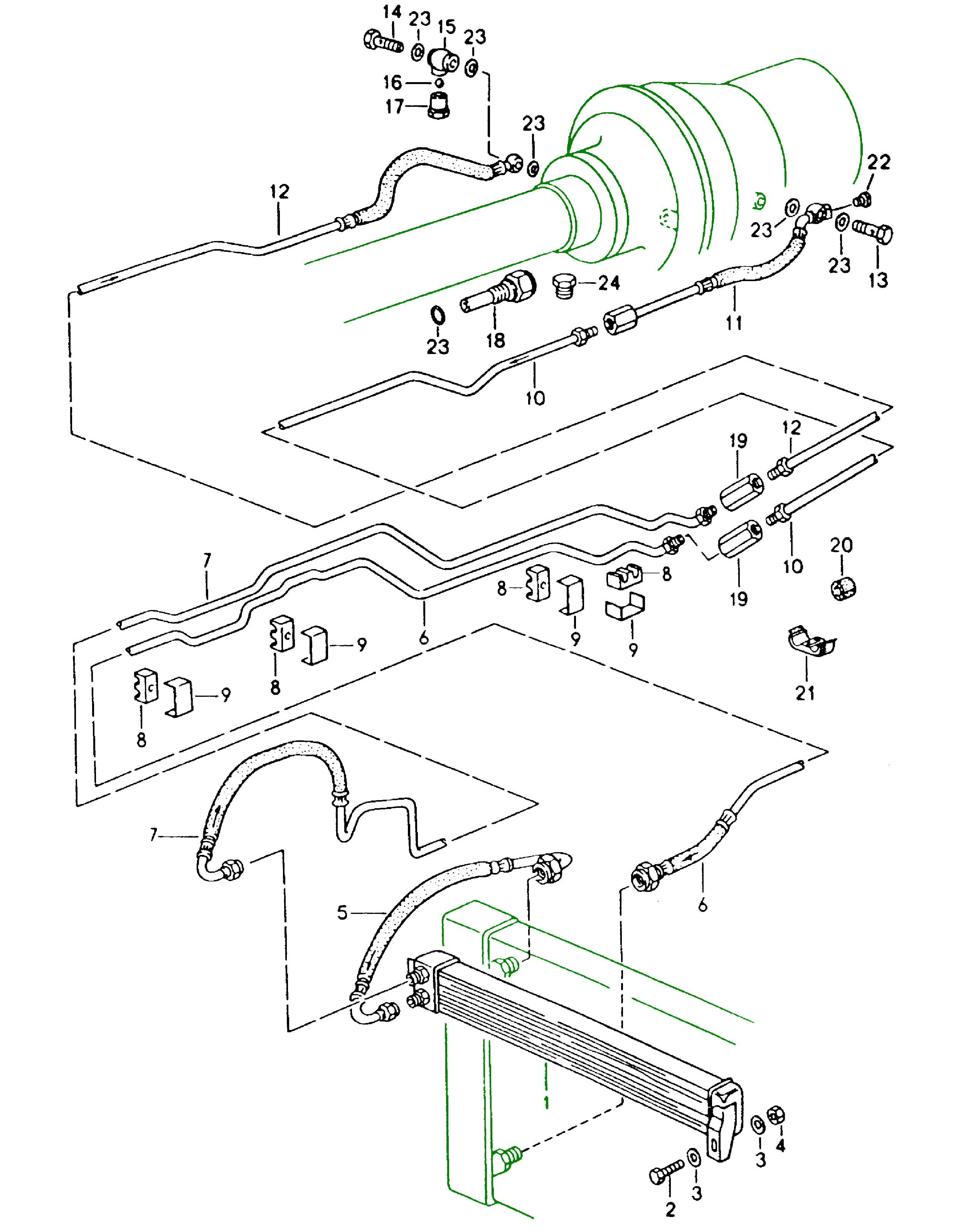

automatic transmission (atf cooler/atf lines) 1/2

Pos	Part Number	Description	Remark	Qty	Model
		automatic transmission (atf cooler/atf lines)			A28.18
1	928 307 027 06	transmission oil cooler		1
2	900 075 057 02	hexagon-head bolt (M6*16)		2
3	N 011 524 7	washer (A6,4)		4
4	900 076 010 02	hexagon nut		2
5	928 307 072 01	oil pipe		1
6	928 307 071 02	oil pipe (supply)		1
7	928 307 073 02	oil pipe (return line)		1
8	928 356 525 01	rubber mounting		5
9	928 356 555 00	clamp		5
10	928 307 080 01	oil pipe (supply)		1
11	928 307 069 01	oil pipe (supply)		1
12	928 307 074 01	oil pipe (return line)		1
13	999 134 030 02	banjo bolt (M14*1,5)		1
14	960 307 161 01	banjo bolt		1
15	960 307 057 01	nipple		1
16	N 025 657 1	ball		1
17	960 307 163 00	screw plug		1
18	928 606 152 00	temperature switch		1	M208
19	477 209 169	connecting piece		2
20	960 307 213 00	protective tube		2
21	960 307 211 00	support		4
22	900 219 002 02	screw plug		1
23	900 123 007 30	sealing ring (A14*18)		X
