Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
![]() |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |

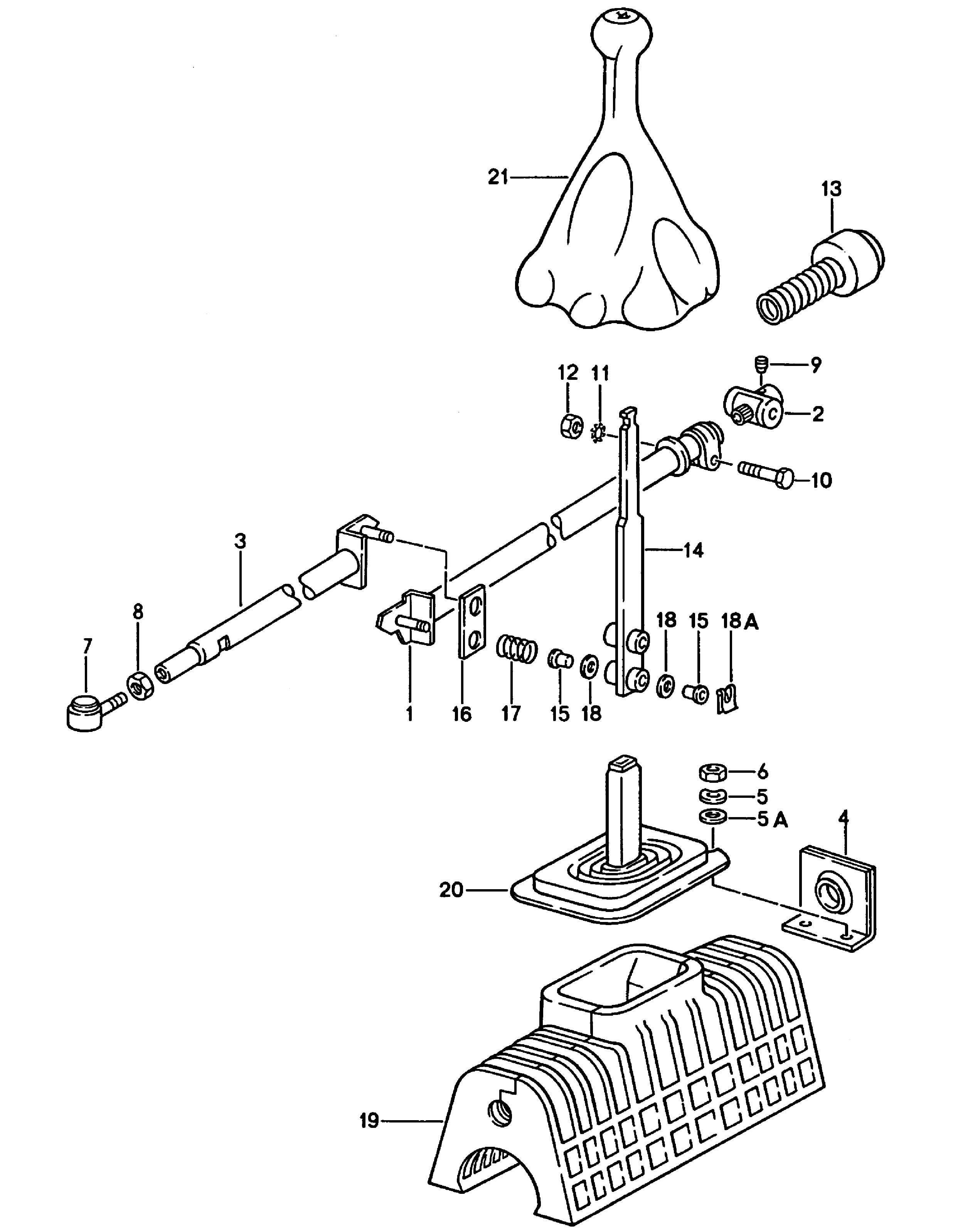

shift mechanism (for cars with manual transmission) |
||||||
1 |
928 424 028 19 |
gear shift rod |
|
1 |
|
|
2 |
928 424 029 00 |
bearing body |
|
1 |
|
|
3 |
928 424 009 10 |
guide tube |
|
1 |
|
|
4 |
928 424 017 05 |
bearing bracket |
|
1 |
|
|
5 |
999 523 104 02 |
lock washer (6 PN) |
|
2 |
|
|
6 |
900 076 010 02 |
hexagon nut (M6) |
|
2 |
|
|
7 |
928 424 005 01 |
angular joint |
|
1 |
|
|
7 |
928 424 005 01 |
angular joint |
|
1 |
|
|
8 |
900 034 003 02 |
hexagon nut (M10) |
|
1 |
|
|
9 |
928 424 229 00 |
conical screw |
|
1 |
|
|
10 |
N 040 222 2 |
hexagon-head bolt (M8 X 32) |
|
1 |
|
|
11 |
999 523 102 02 |
lock washer |
|
1 |
|
|
12 |
900 076 025 02 |
hexagon nut (M8) |
|
1 |
|
|
13 |
928 424 209 01 |
bellows |
|
1 |
|
|
14 |
928 424 067 51 |
gearshift lever |
|
1 |
|
|
15 |
999 924 002 40 |
plain bearing |
|
4 |
|
|
16 |
928 424 149 02 |
friction strap |
|
1 |
|
|
17 |
928 424 147 03 |
compression spring |
|
2 |
|
|
18 |
900 234 510 02 |
support washer (s10 x 16) |
|
2 |
|
|
19 |
928 424 182 03 |
sound absorber |
|
1 |
|
|
20 |
928 424 181 04 |
sleeve |
|
1 |
|
|
21 |
928 424 073 04 |
head shift rod with leather bellows |
-93 |
1 |
|
|
|
|
|
94- |
|
|
