Model

Year

MG

SG

Illustration

Restrictions

UPD

PET

928

1995

0

01

001-00



248








Pos

Part  Number

Description

Remark

Qty

Model

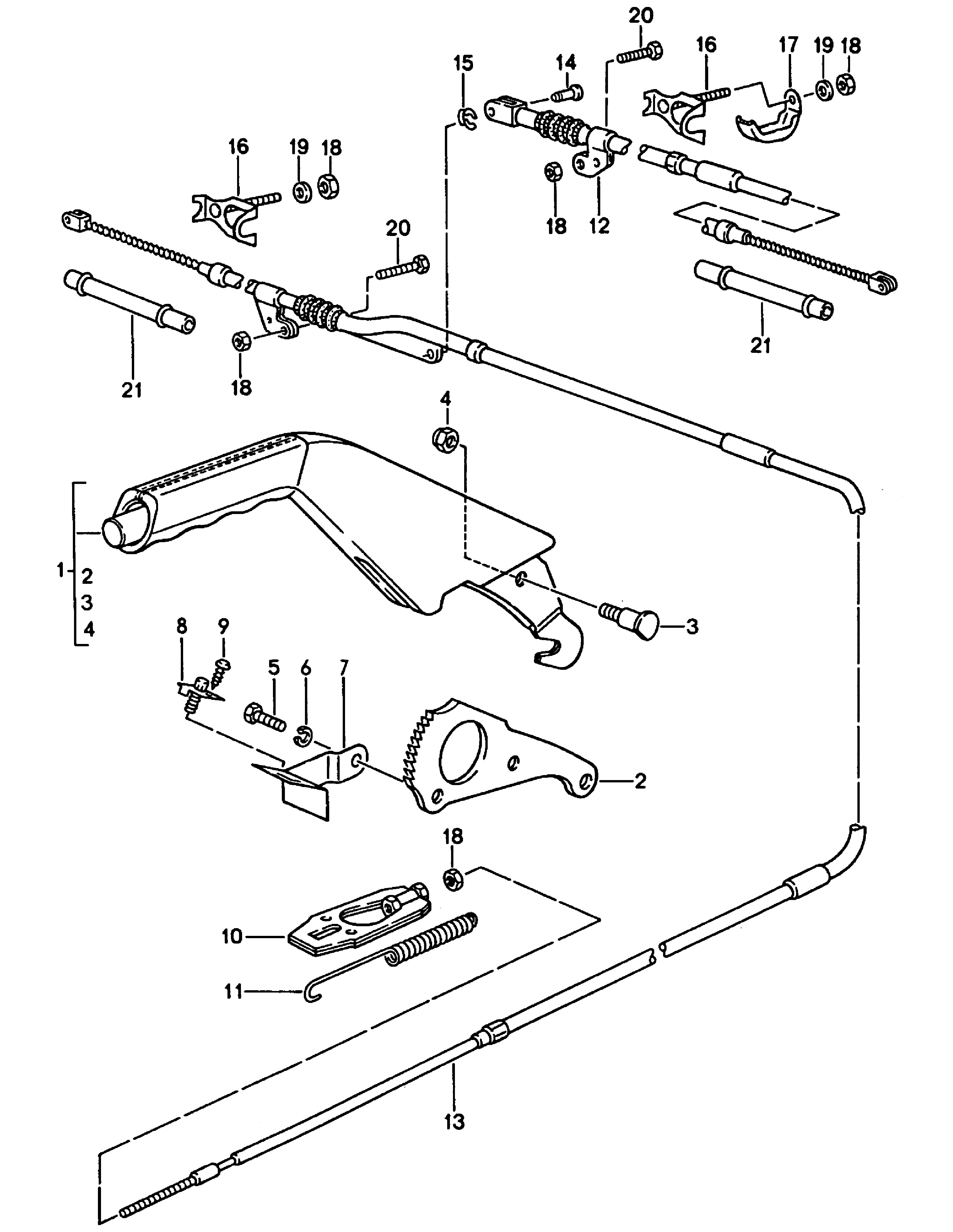

actuator (handbrake)



1

928 424 051 00

parking-brake lever

-93

1









94-





2

928 424 541 15

locking segment



1



3

928 424 527 00

bearing pin



1



4

900 084 004 02

hexagon nut



1



4

900 084 004 03

hexagon nut



1



5

N 010 239 11

hexagon-head bolt (M 8*18)



2



6

900 027 015 02

lock ring (B8)



2



7

928 424 535 01

support

/LL

1



(7)

927 424 535 01

support

/RL

1



8

113 947 561 G

contact switch



1



9

N 013 957 5

tapping screw (B3,5*9,5)



1



10

928 424 033 00

turnbuckle



1



11

477 711 975

return spring



1



12

928 424 551 16

parking-brake cable

/L

1



13

928 424 552 16

parking-brake cable

/R

1



14

999 166 048 02

bolt (A6*17*14)



1



15

N 012 645 2

lock



1



16

928 424 045 00

support



1



17

928 424 423 01

support



1



18

900 910 010 02

lock nut



5



19

N 011 524 7

washer (A6,4)



2


20 900 074 111 02

hexagon-head bolt (M 6*50)

   2


928 424 405 01

guide tube



2
