Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
001-00
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
 |

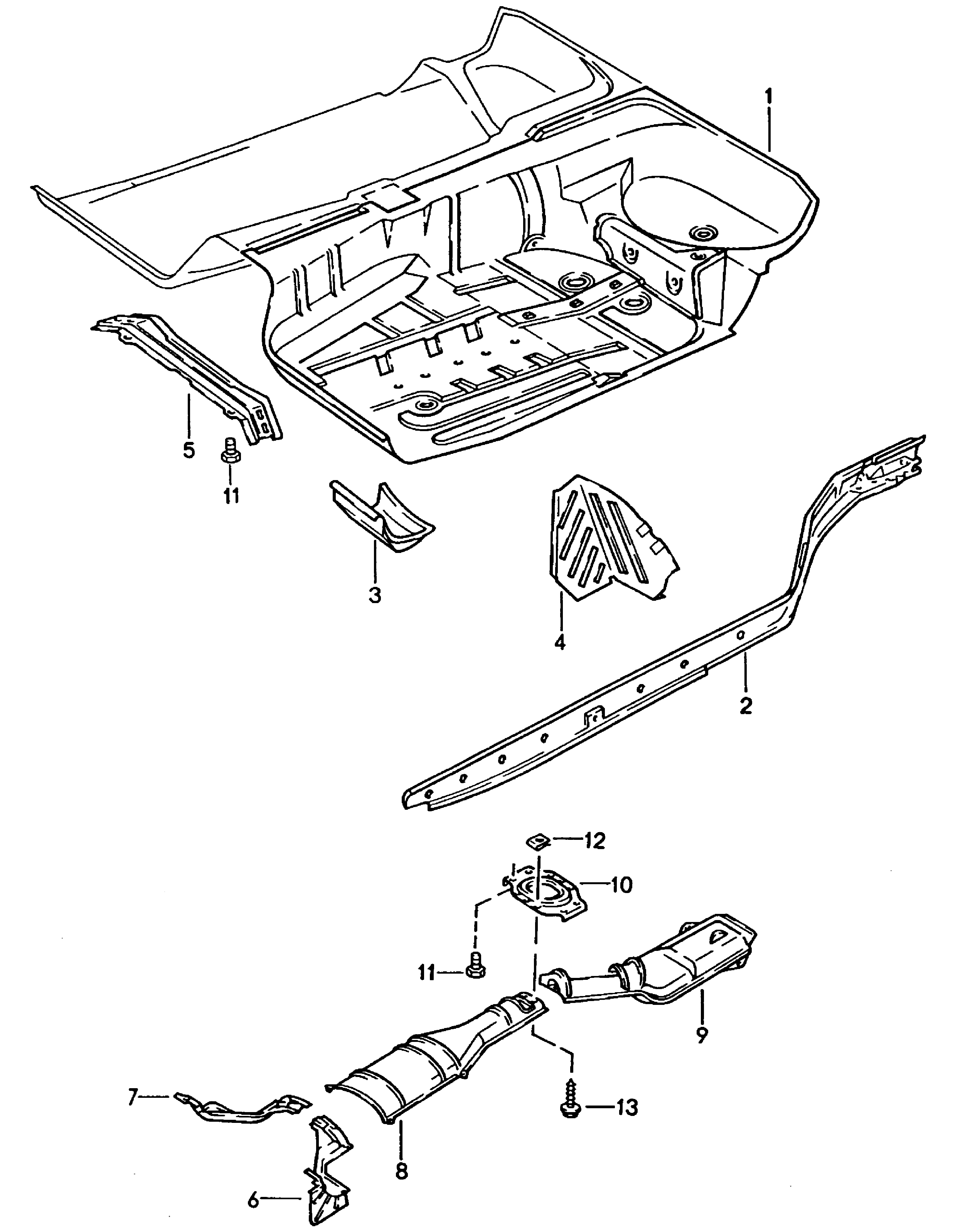

Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|
floor section (frame centre) |
|
|
|
|
|
1 |
928 501 053 08 |
floor section (GRV - prime coated) |
/LL /L |
1 |
|
|
|
(1) |
928 501 054 09 |
floor section (GRV - prime coated) |
/LL /R |
1 |
|
|
|
(1) |
927 501 053 07 |
floor section (GRV - prime coated) |
/RL /L |
1 |
|
|
|
(1) |
927 501 054 08 |
floor section (GRV - prime coated) |
/RL /R |
1 |
|
|
|
2 |
928 501 021 04 |
side member (GRV - prime coated) |
/LL /L |
1 |
|
|
|
(2) |
928 501 022 05 |
side member (GRV - prime coated) |
/LL /R |
1 |
|
|
|
(2) |
927 501 021 05 |
side member (GRV - prime coated) |
/RL /L |
1 |
|
|
|
(2) |
927 501 022 04 |
bracket (GRV - prime coated) |
/RL /R |
1 |
|
|
|
3 |
928 501 093 03 |
gusset plate (GRV - prime coated) |
/L |
1 |
|
|
|
(3) |
928 501 094 03 |
gusset plate (GRV - prime coated) |
/R |
1 |
|
|
|
4 |
928 504 071 02 |
foot support (GRV - prime coated) |
/ LL /L |
1 |
|
|
|
(4) |
927 551 071 02 |
foot support (GRV - prime coated) |
/RL /R |
1 |
|
|
|
5 |
928 501 901 05 |
cross member |
|
1 |
|
|
|
6 |
928 504 921 05 |
heat protection plate |
|
1 |
|
|
|
7 |
928 504 924 05 |
heat protection plate |
|
1 |
|
|
|
8 |
928 504 091 00 |
heat protection plate |
|
1 |
|
|
|
(8) |
928 504 091 01 |
heat protection plate |
(J) |
1 |
|
|
| 9 |
928 504 931 04 |
heat protection plate |
/L |
1 |
|
|
|
(9) |
928 504 932 04 |
heat protection plate |
/R |
1 |
|
|
|
10 |
928 501 495 02 |
bridge (seat belt) |
|
1 |
|
|
|
11 |
999 075 032 02 |
hexagon-head bolt (M8*20) |
|
4 |
|
|
|
12 |
999 591 487 02 |
speed nut (B5,5) |
|
16 |
|
|
|
13 |
900 187 115 02 |
combination screw (B5,5*16) |
|
16 |
|
