Model

Year

MG

SG

Illustration

Restrictions

UPD

PET

928

1995

0

01

001-00

248

Pos

Part  Number

Description

Remark

Qty

Model

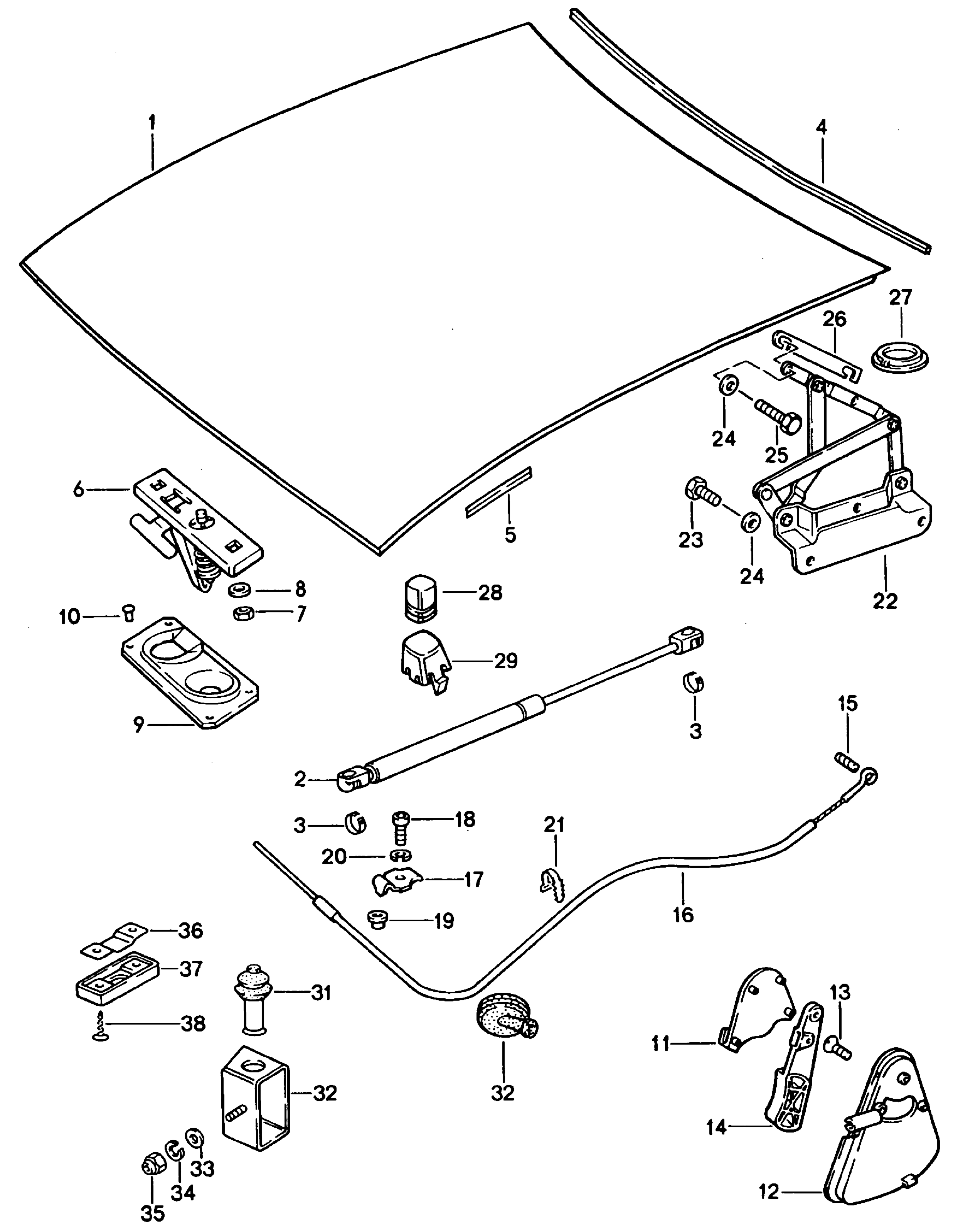

bonnet (installation parts)

1

928 511 005 04

bonnet (GRV - prime coated)

1

2

928 511 139 03

gas-pressure spring

2

3

900 169 016 02

clip

4

4

928 511 141 03

gasket

1

5

928 504 551 03

gasket (lateral)

2

6

928 511 029 03

lid lock (upper part)

1

7

900 076 010 02

hexagon nut (M6)

2

8

N 015 404 1

washer (6,4)

2

9

928 511 027 02

lid lock (lower part

1

10

999 190 128 30

blind rivet (4,8*7,4)

4

11

928 511 143 02

cover (70B black)

1

12

928 511 173 02

cup

1

13

900 249 001 02

countersunk-head screw  (M6*15)

2

14

928 511 175 02

pull handle

1

15

900 197 018 00

roll pin (4*12)

1

16

928 504 037 00

wire pull

1

(16)

927 504 037 00

wire pull

1

17

928 511 541 02

clamping piece

1

18

900 067 008 02

pan-head screw (M6*12)

1

19

928 511 543 02

sleeve

1

20

N 012 007 2

lock ring (A6)

1

21

999 513 007 40

tie-wrap

1

22

928 511 041 04

lid hinge

/L

1
