Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
001-00
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
 |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|

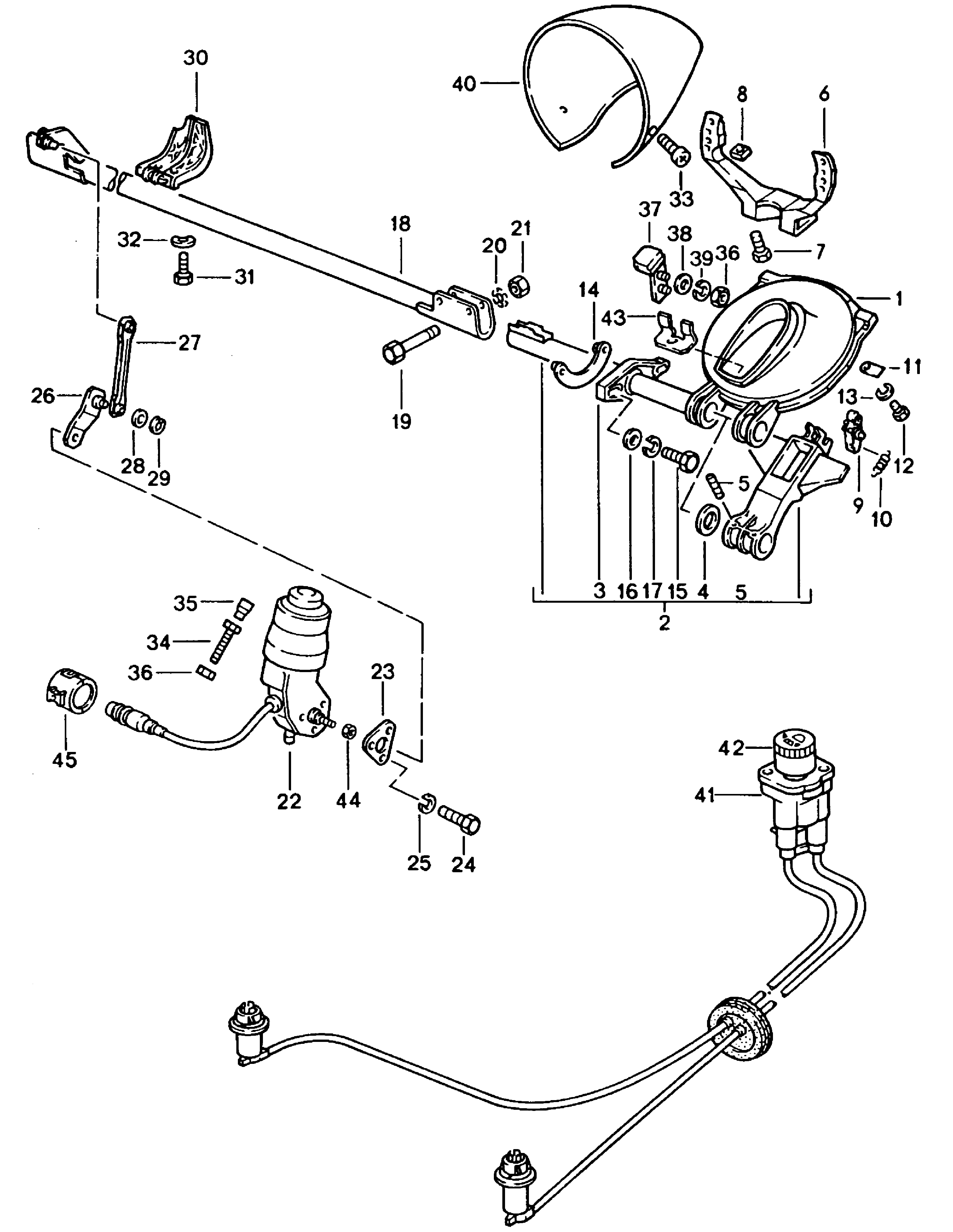

pop-up headlight |
|
|
|
|
|
1 |
928 750 243 05 |
swivel frame |
|
2 |
|
|
|
2 |
928 750 097 05 |
driving arm |
|
1 |
|
|
|
(2) |
928 750 098 05 |
driving arm |
|
1 |
|
|
|
3 |
928 750 211 04 |
bearing for headlamp shaft |
|
2 |
|
|
|
4 |
928 750 253 02 |
washer |
|
4 |
|
|
|
5 |
900 095 085 02 |
spiral clamping pin |
|
4 |
|
|
|
6 |
928 750 285 04 |
supporting arm |
|
2 |
|
|
|
7 |
900 067 011 02 |
pan-head screw (M6*20) |
|
4 |
|
|
|
- |
999 025 108 02 |
washer (6,5) |
|
4 |
|
|
|
8 |
900 076 010 02 |
hexagon nut (M6) |
|
4 |
|
|
|
9 |
928 750 079 02 |
locking segment |
|
2 |
|
|
|
10 |
928 750 291 02 |
tension spring |
|
2 |
|
|
|
11 |
928 750 325 02 |
tab |
|
4 |
|
|
|
12 |
999 015 004 02 |
screw (AM5*10) |
|
4 |
|
|
|
13 |
900 025 003 02 |
washer (A5,3) |
|
4 |
|
|
|
14 |
928 750 071 02 |
counter plate |
|
2 |
|
|
|
15 |
900 074 015 02 |
hexagon-head bolt (M6*30) |
|
4 |
|
|
|
16 |
N 011 666 7 |
washer (B6,4) |
|
4 |
|
|
|
17 |
N 012 006 4 |
lock ring (B6) |
|
4 |
|
|
|
18 |
928 750 041 05 |
shaft (centre |
|
1 |
|
|
|
19 |
900 075 343 02 |
hexagon-head bolt (M6*45) |
|
4 |
|
|
|
20 |
999 025 093 09 |
washer (6,4) |
|
4 |
|
|
|
21 |
900 910 012 02 |
lock nut (M6) |
|
4 |
|
|
|
22 |
928 624 023 00 |
engine |
|
1 |
|
|
|
23 |
928 750 207 02 |
plate |
|
1 |
|
