Model

Year

MG

SG

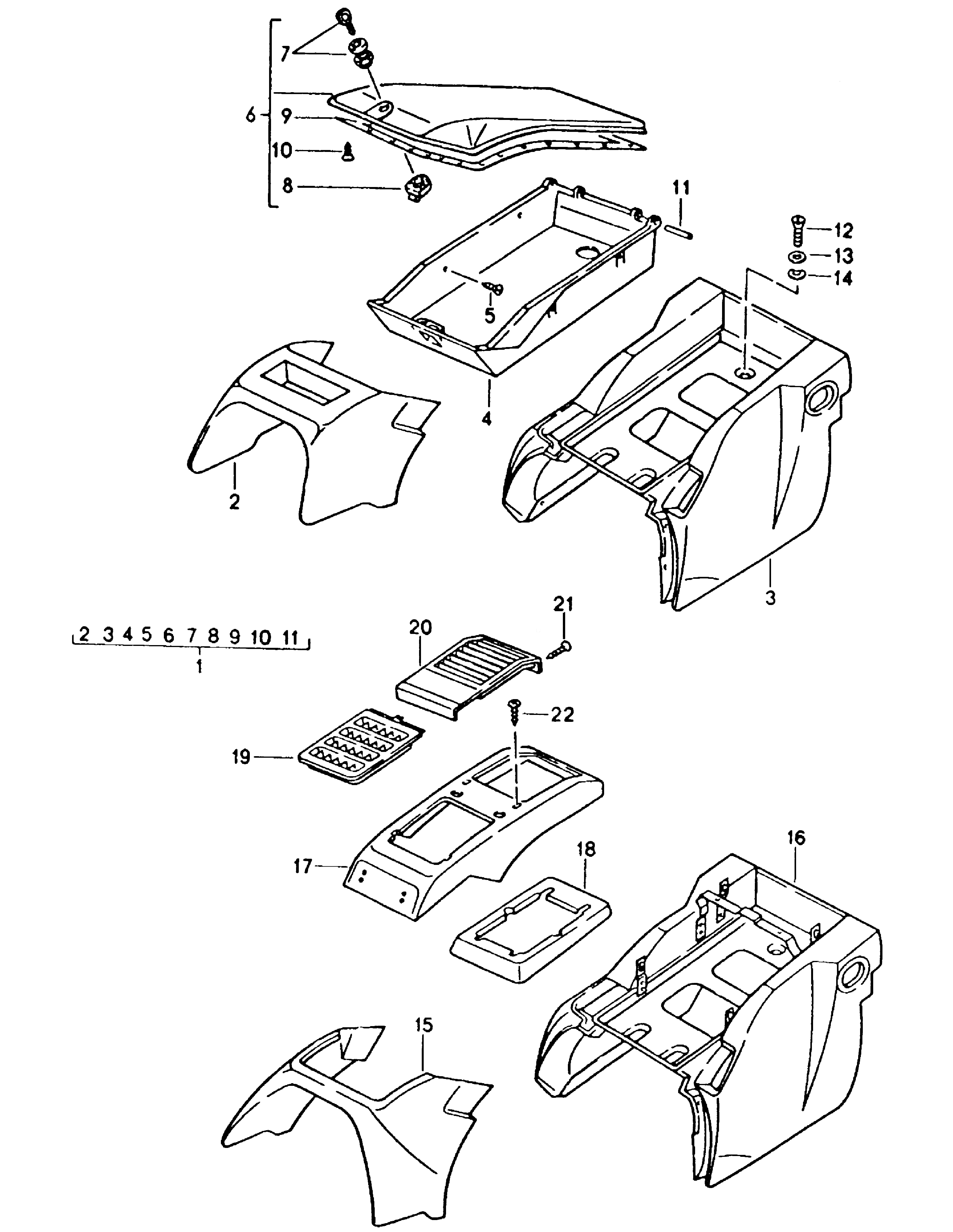

Illustration

Restrictions

UPD

PET

928

1995

0

01

807-20

248

Pos

Part  Number

Description

Remark

Qty

Model

package box (rear)

1

A 928 522 065 62

package box (leather)

1

(1)

A 928 522 065 10

package box (leatherette)

1

2

928 522 063 57

package box (front part - leather)

1

(2)

928 522 063 07

package box (front part - leatherette)

1

3

928 522 067 59

package box (leather)

1

(3)

92S 522 067 07

package box (leatherette)

1

4

928 522 279 02

insert (package box)

1

5

900 144 017 07

tapping screw (B2,9*13)

6

6

928 522 061 51

 lid (leather)

1

(6)

928 522 061 02

lid (leatherette)

1

7

928 522 015 02

push-button lock (with 1 key)

1

8

928 522 069 02

catch

1

9

928 522 269 02

cover strip (lid)

1

10

900 143 066 07

tapping screw (3,75*7)

3

(10)

999 141 010 07

countersunk-head screw  (7*7)

14

11

900 309 010 00

roll pin (3*32)

2

12

N 014 139 11

oval-head screw (M6*12)

4

13

900 089 005 02

washer (6)

4

14

N 012 226 5

spring washer (A6)

4

15

928 522 063 08

front part (auxiliary air conditioner leatherette)

1

M570

(15)

928 522 063 58

front part (auxiliary air conditioner leather)

1

M570

16

928 522 067 08

package box (leatherette)

1

M570

(16)

928 522 067 60

package box (leather)

1

M570
