Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
928 |
1995 |
8 |
09 |
809-01 |
248 |
||||
|
|
![]() |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|

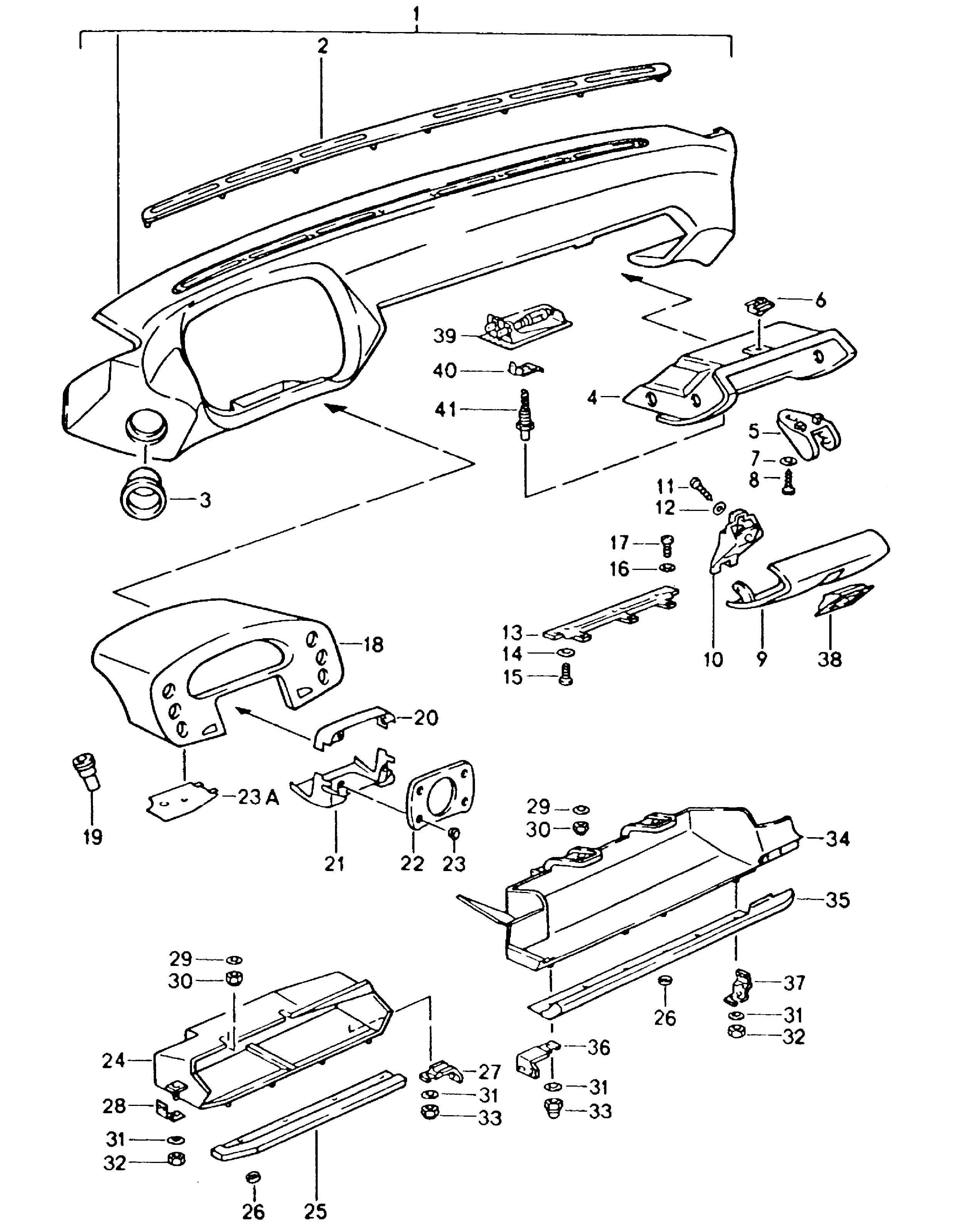

dashboard trim (without passenger's airbag) |
|
|
M564 |
|
1 |
928 552 023 06 |
dashboard (trim leatherette) |
/LL |
1 |
|
|
1 |
927 552 023 06 |
dashboard (trim leatherette) |
/RL |
1 |
|
|
1 |
928 552 021 54 |
dashboard (trim leather) |
/LL |
1 |
|
|
1 |
927 552 021 54 |
dashboard (trim leather) |
/RL |
1 |
|
|
2 |
928 552 309 51 |
defroster trim |
|
1 |
|
|
- |
900 336 001 02 |
washer 4 |
|
8 |
|
|
- |
999 919 100 02 |
screw (4,0*10) |
|
8 |
|
|
3 |
928 552 057 03 |
cover (air duct) |
|
1 |
|
|
4 |
928 552 051 05 |
glove compartment |
/LL |
1 |
|
|
4 |
927 552 051 05 |
glove compartment |
/RL |
1 |
|
|
5 |
928 552 253 03 |
closing element |
|
1 |
|
|
6 |
999 507 029 02 |
speed nut |
|
2 |
|
|
7 |
900 151 002 07 |
washer |
|
2 |
|
|
8 |
900 143 019 07 |
oval-head sheet metal screw (4,8*22) |
|
2 |
|
|
9 |
928 552 053 04 |
glove compartment cover (leatherette) |
/LL |
1 |
|
|
9 |
927 552 053 04 |
glove compartment cover (leatherette) |
/RL |
1 |
|
|
9 |
928 552 059 54 |
glove compartment cover (leather) |
/LL |
1 |
|
|
9 |
927 552 059 S4 |
glove compartment cover (leather) |
/RL |
1 |
|
|
10 |
928 552 903 02 |
catch (with lock cylinder, stipulated lock, number state lock number) |
|
1 |
|
|
11 |
900 143 113 07 |
tapping screw (B4,2*13) |
|
2 |
|
|
12 |
N 011 523 11 |
washer (A5,0) |
|
2 |
|
|
13 |
928 552 055 03 |
hinge (glove compartment) |
|
1 |
|
|
14 |
900 151 002 07 |
washer (A5,3) |
|
3 |
|
