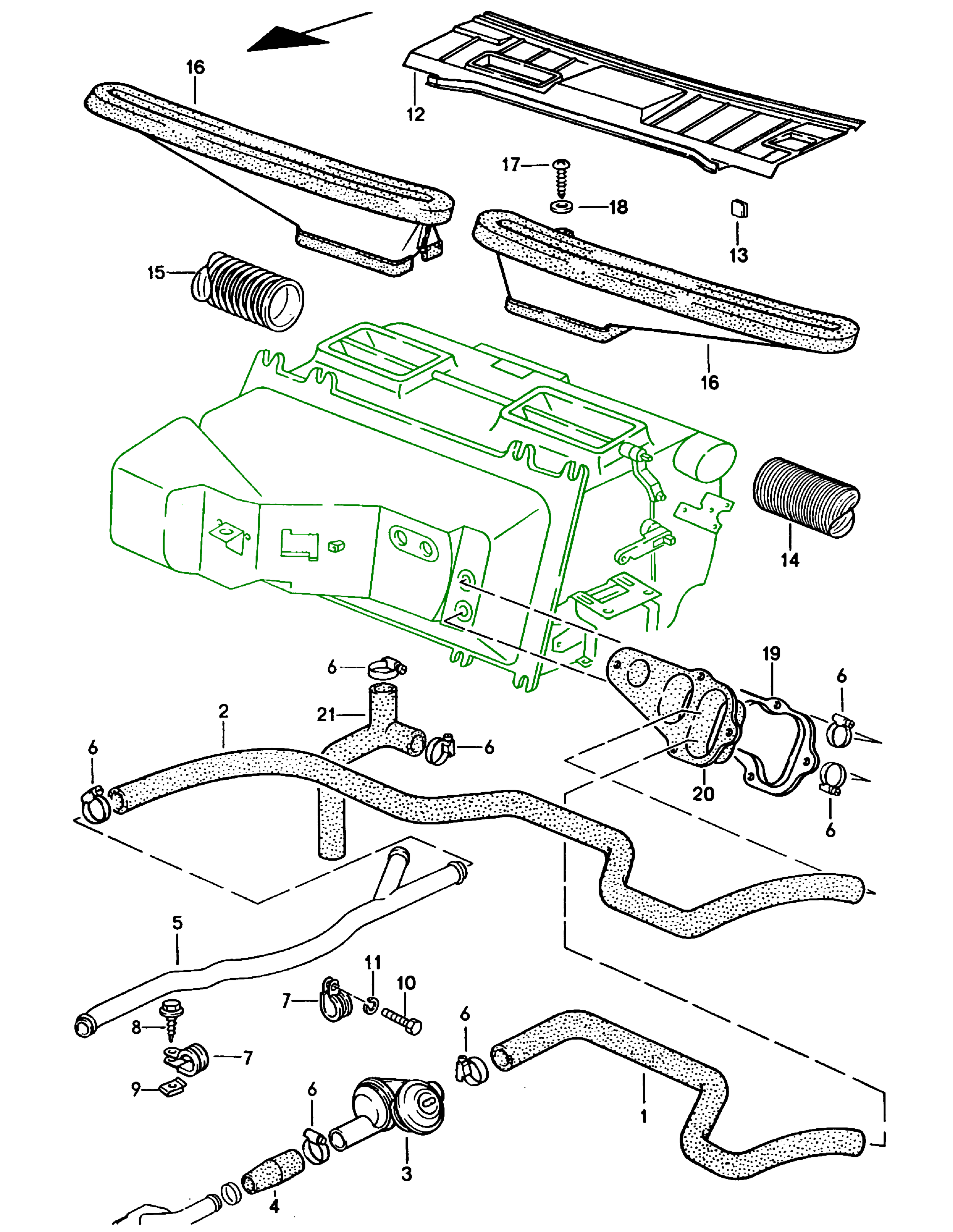

automatic air conditioner (hoses heating nozzles) 1/2

Pos	Part Number	Description	Remark	Qty	Model
		automatic air conditioner (hoses heating nozzles)
1	928 574 587 03	heater hose (intake)	/LL	1
1	927 574 587 03	heater hose (intake)	/RL	1
2	928 574 589 04	heater hose (return line)	/LL	1
2	927 574 589 03	heater hose (return line)	/RL	1
3	928 574 573 03	disc valve		1
4	928 574 567 03	connecting hose		1
5	928 574 106 03	heater pipeline	/LL	1
5	927 574 106 04	heater pipeline	/RL	1
6	999 512 346 00	hose clamp		6
7	999 511 066 02	clamp		2
8	900 187 108 02	tapping screw (BZ6'3*16)		1
9	999 507 003 02	speed nut (B6,3*16)		1
10	900 075 014 02	hexagon-head bolt (M6*18)		1
11	N 012 006 4	lock ring (B6)		1
12	A 928 574 157 00	cowl panel covering	/LL 92	1
12	A 928 574 157 00	cowl panel covering	/LL 93-	1
12	928 574 157 00	cowl panel covering		1
12	A 927 574 553 06	cowl panel covering	/RL 92	1
12	A 927 574 157 00	cowl panel covering	/RL 93-	1
12	927 574 157 00	cowl panel covering	/RL	1
13	999 920 005 02	u-clamp		4
14	928 574 626 02	flexible pipe (without airbag)	/LL /L	1	M573
14	928 574 626 03	flexible pipe (with airbag)	/LL /L	1	M573
