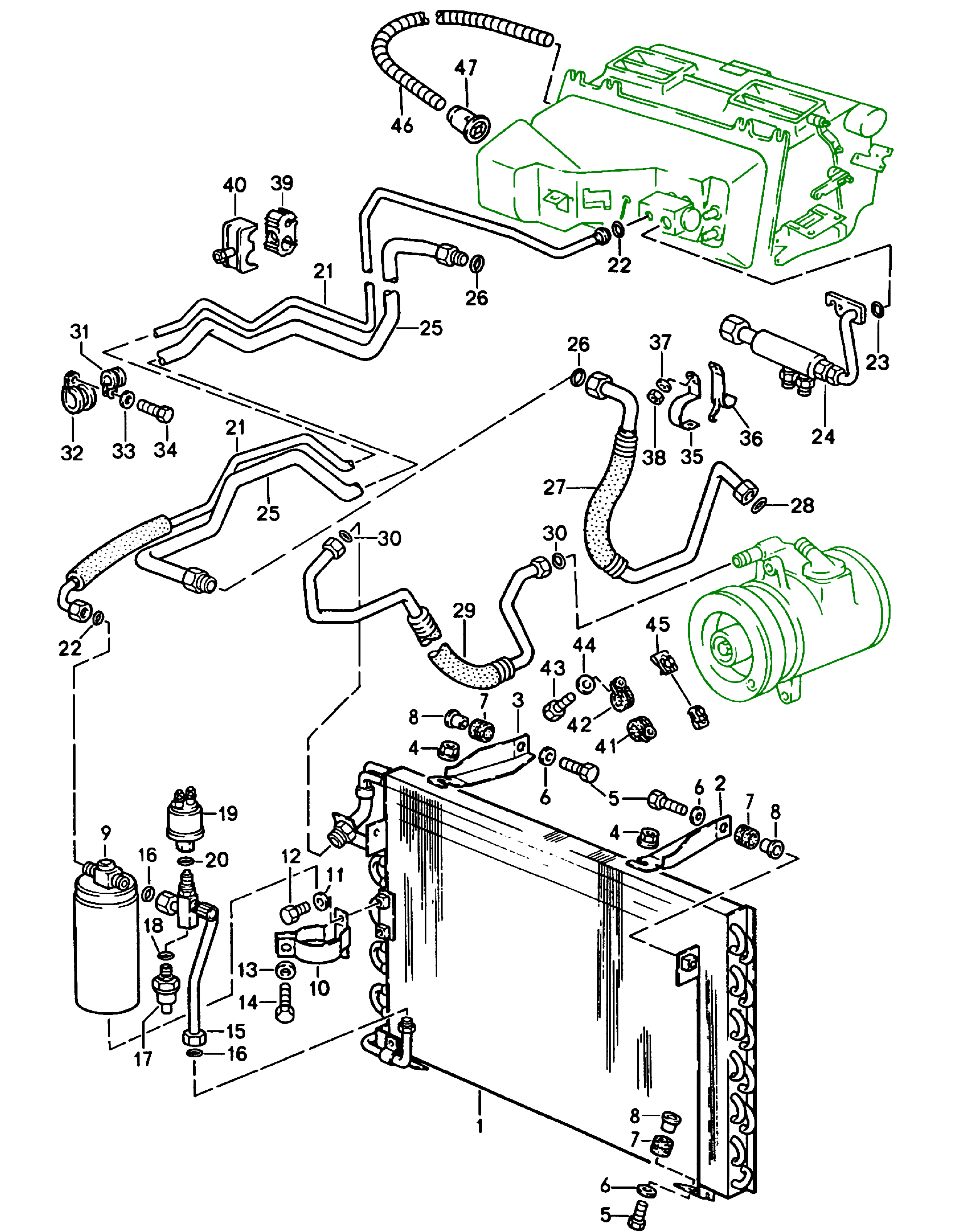

automatic air conditioner (lines and auxiliary units) 1 1/-

Pos	Part Number	Description	Remark	Qty	Model
		automatic air conditioner (lines and auxiliary units) 1
1	928 573 021 00	condenser		1
2	928 573 101 03	retaining bracket	/L	1
3	928 573 102 03	retaining bracket	/R	1
4	999 084 613 02	lock nut (M6)		2
5	N 010 217 9	hexagon-head bolt (M6*20)		4
6	900 151 003 02	washer (A6,4)		4
7	999 702 046 50	rubber sleeve		4
8	928 573 347 03	spacer tube		4
9	A 944 573 943 00	desiccator	-92	1
9	944 573 943 00	desiccator	-92	1
10	944 573 081 00	support		1
11	900 025 003 02	washer ( A5,3)		2
12	N 010 207 6	hexagon-head bolt (M5*12)		2
13	900 025 003 02	washer (A5,3)		1
14	900 075 145 02	hexagon-head bolt (M5*15)		1
15	928 573 095 04	connecting tube		1
16	999 707 247 40	o-ring		2
17	959 613 137 00	low pressure switch		1
18	900 174 011 40	o-ring		1
19	928 606 150 00	pressure transmitter		1
20	999 707 261 40	o-ring		1
21	928 573 093 08	pressure line (NW8)	/LL	1
21	927 573 093 09	pressure line (NW8)	/RL	1
