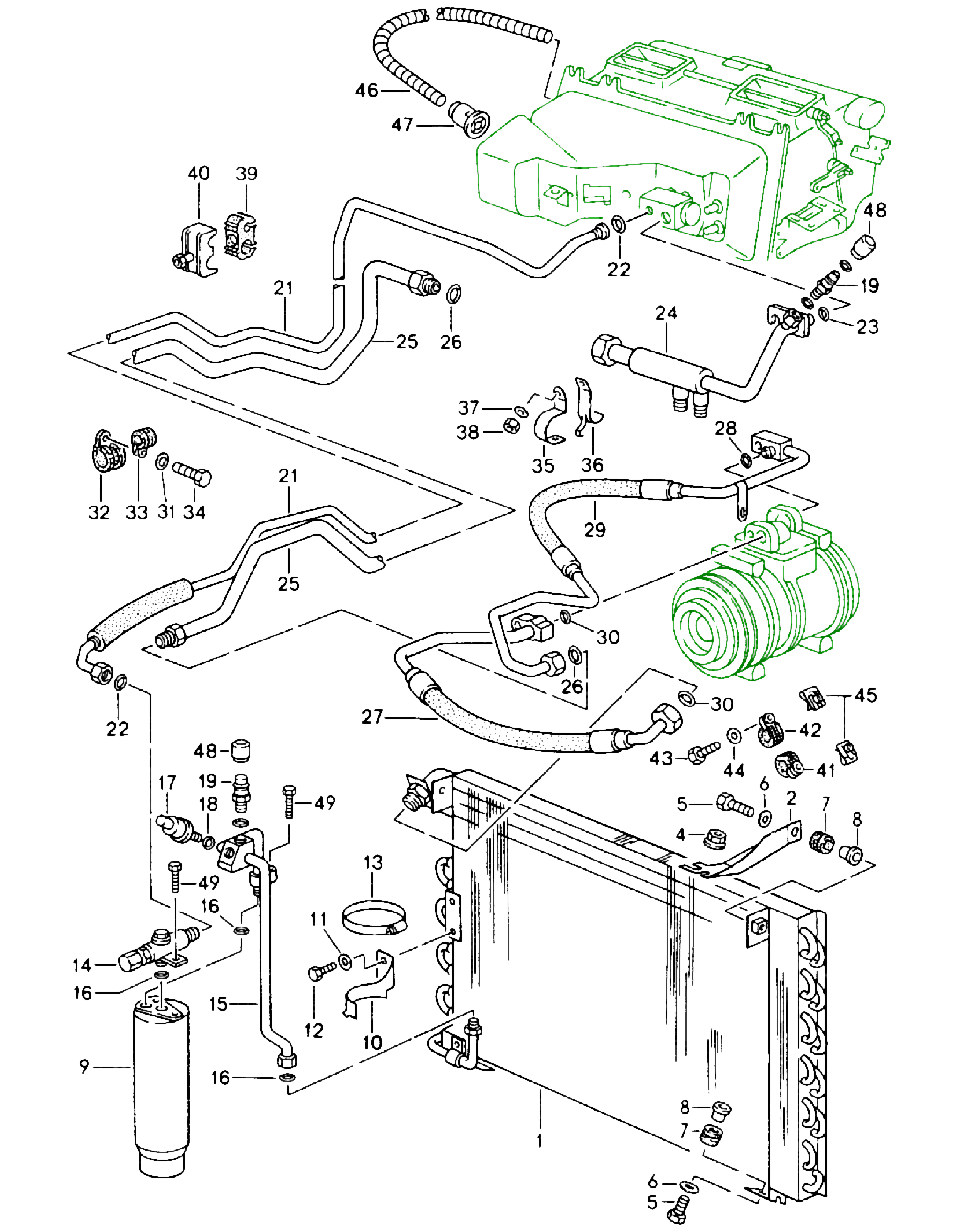

automatic air conditioner (lines and auxiliary units)2 1/-

Pos	Part Number	Description	Remark	Qty	Model
		automatic air conditioner (lines and auxiliary units) 2
1	928 573 021 01	condenser		1
2	928 573 101 04	retaining bracket	/L	1
3	928 573 102 04	retaining bracket	/R	1
4	999 084 613 02	lock nut (M6)		2
5	999 217 025 02	hexagon-head bolt (M6*20)		4
6	900 151 003 02	washer (A6,4)		4
7	999 702 046 50	rubber sleeve		4
8	928 573 347 03	spacer tube		4
9	944 573 143 01	desiccator		1
10	964 573 451 01	support		1
11	900 025 003 02	washer (A5,3)		2
12	N 010 207 6	hexagon-head bolt (M5*12)		2
13	999 512 390 00	hose clamp (60-80/13)		1
14	993 573 243 00	distributing piece (for desiccator)		1
15	928 573 095 05	connecting tube		1
16	999 707 247 40	o-ring		2
17	964 613 137 01	pressure switch		1
18	900 174 011 40	o-ring		1
19	928 573 466 00	valve		1
19	928 573 465 00	valve (for fuel cooler)		1
20	999 707 259 40	o-ring		1
21	928 573 093 08	pressure line (NW 8)	/LL	1
21	927 573 093 09	pressure line (NW 8)	/RL	1
