Model

Year

MG

SG

Illustration

Restrictions

UPD

PET

928

1995

9

02

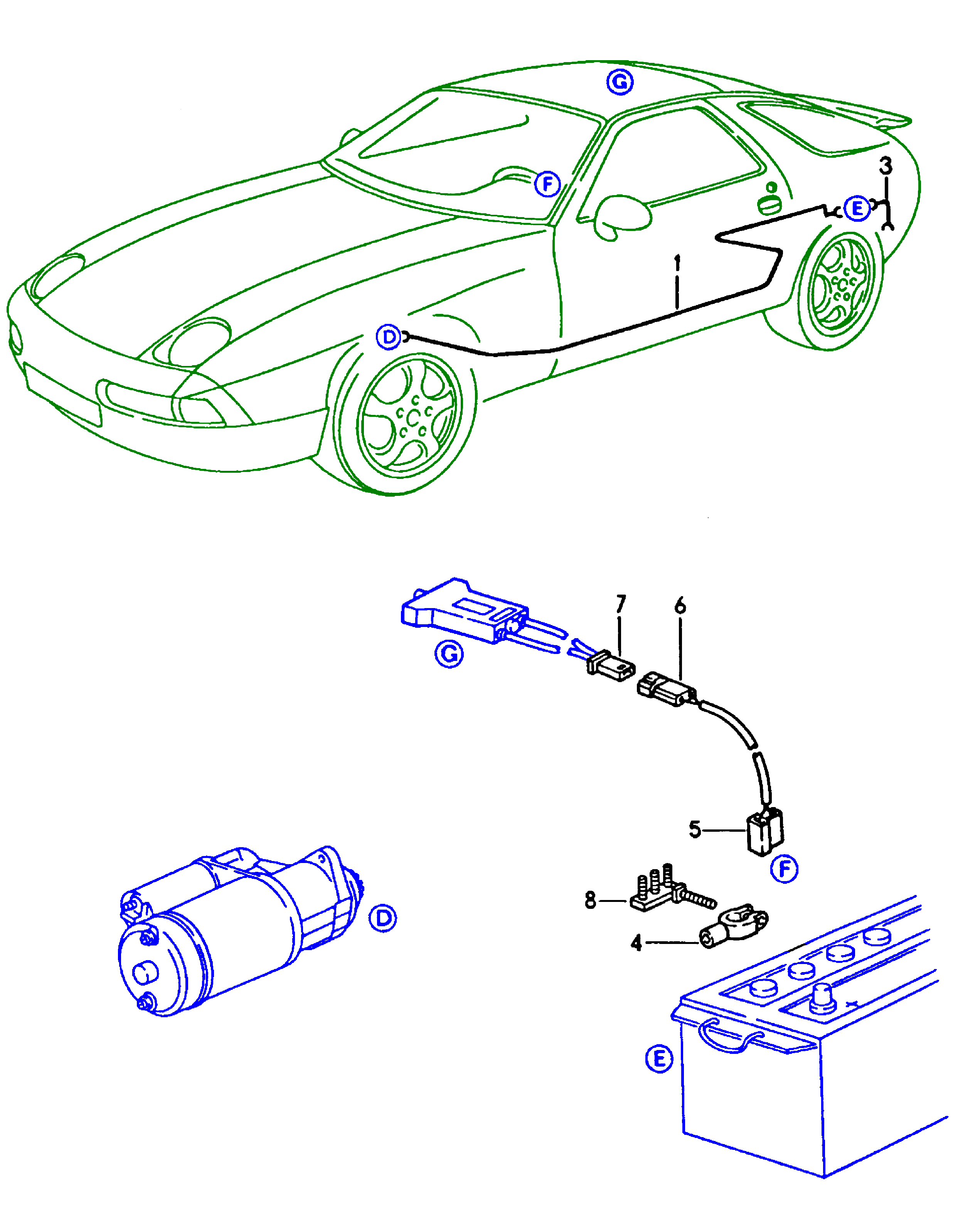

902-12



248








Pos

Part  Number

Description

Remark

Qty

Model





wiring harness (passenger compartment)







1

928 612 007 04

 wiring harness (starter - battery)



1



3

928 612 009 13

 ground cable (battery - body)



1



4

928 611 898 02

 terminal clamp



1



5

999 652 167 40

 terminal sleeve housing



1



6

171 971 998 A

 connector housing



1



7

171 971 999 A

 terminal sleeve housing



1



8

928 611 085 00

 distributing piece



1







mounting parts











battery-starter cable







-

999 513 003 40

 tie-wrap



1



-

999 511 156 00

 clamp (13 / 15 w 5)



13



-

999 591 839 40

 hexagon nut (T5)



13



-

999 702 124 50

 grommet



1






mounting parts



1






ground cable



1



-

900 075 398 02

 hexagon-head bolt (M8*16 SB)



1



-

N 012 241 8

 spring washer (B8)



1



-

900 151 008 02

 washer (A8,4)



1



-

999 702 128 50

 dummy grommet (8*10*15)



1
