Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
9
11
911-10
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
9 |
11 |
911-10 |
248 |
||||
|
|
|
 |

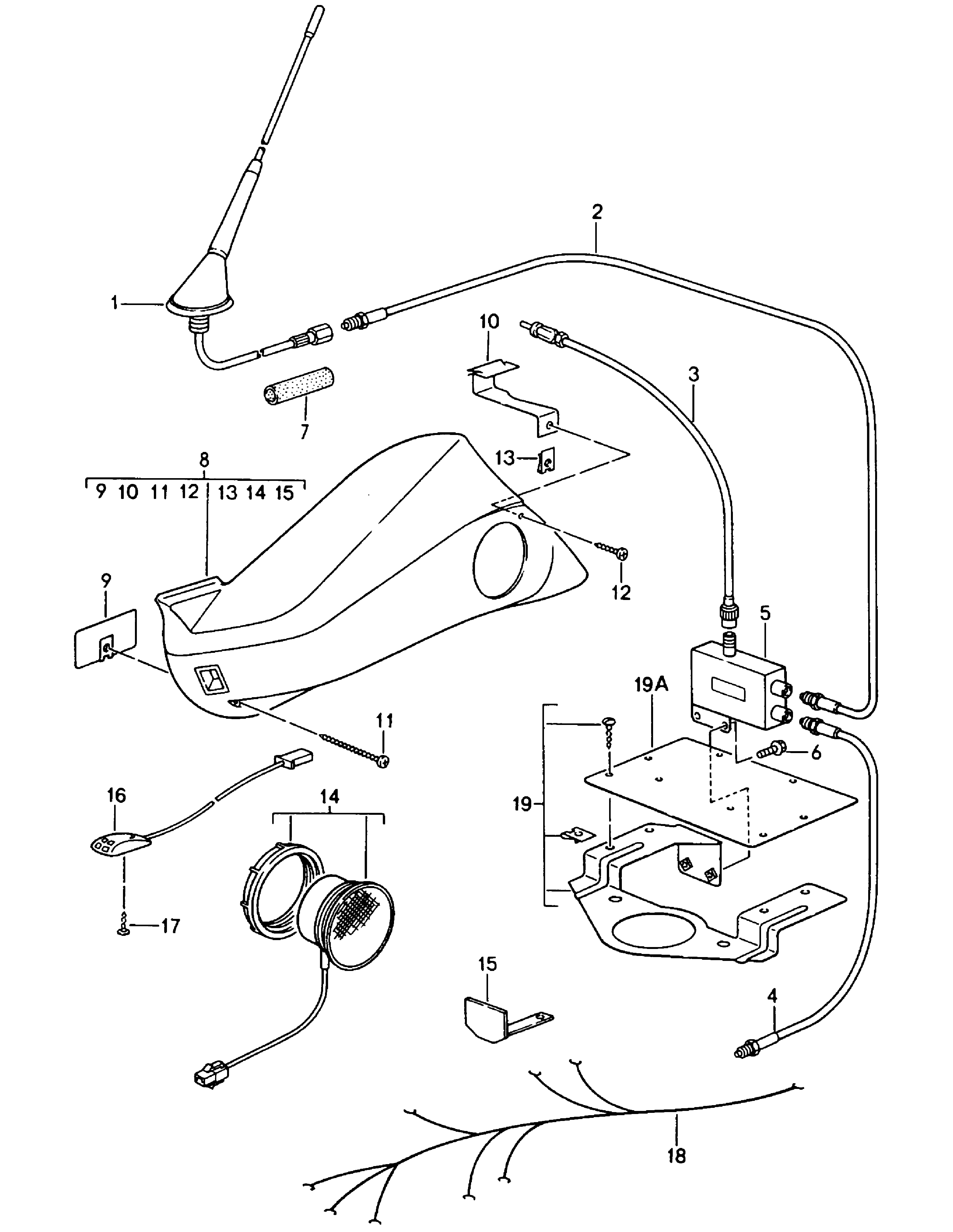

Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|
preparation for telephone |
|
|
M611/614 |
|
|
1 |
964 646 314 00 |
antenna |
|
|
|
|
|
2 |
996 612 086 00 |
extension cable |
|
|
|
|
|
3 |
928 646 064 00 |
cable (antenna two-way splitter - radio) |
|
1 |
|
|
|
4 |
944 646 065 00 |
cable (antenna two-way splitter - telephone) |
|
1 |
|
|
|
5 |
993 646 313 00 |
antenna two-way splitter |
|
1 |
|
|
|
6 |
999 075 067 09 |
combination screw (M4*8) |
|
2 |
|
|
|
7 |
928 612 636 01 |
protective tube |
|
1 |
|
|
|
8 |
928 646 201 00 |
bracket |
|
1 |
|
|
|
9 |
928 646 243 00 |
washer |
|
1 |
|
|
|
10 |
928 646 245 00 |
retaining bracket |
|
1 |
|
|
|
11 |
900 143 090 07 |
tapping screw (4,2*60) |
|
1 |
|
|
|
12 |
900 143 091 07 |
tapping screw (3,9*22) |
|
1 |
|
|
|
13 |
999 591 901 02 |
speed nut (3,9) |
|
1 |
|
|
|
14 |
993 646 241 00 |
loudspeaker |
|
1 |
|
|
|
15 |
993 646 247 01 |
stop (for seat) |
|
1 |
|
|
|
16 |
964 646 307 00 |
microphone |
|
1 |
M614 |
|
|
16 |
993 646 307 00 |
microphone |
|
1 |
M611 |
|
|
17 |
999 919 039 02 |
countersunk head tapping screw (3,5*8) |
|
2 |
|
|
|
18 |
928 646 050 00 |
wiring harness |
|
1 |
|
|
|
- |
928 646 510 00 |
screw (for mount connector housing |
|
2 |
M611 |
|
|
19 |
964 646 026 00 |
bracket |
|
1 |
|
|
|
19A |
993 646 203 00 |
bracket |
|
1 |
M611 |
|
|
|
|
|
|
|
|
